# Integration guide for IOIO Notifications

The IOIO platform has two types of notifications:

Webhooks
E-Mail Notifications

This guide contains:

Turn On Notifications for each IOIO Service
How to Subscribe to Webhooks
- Using the IOIO webapp
- Using the IOIO API
How to subscribe to email notifications
- Using the IOIO webapp
- Using the IOIO API
List of Notifications sent by the services

Prerequisites

Endpoint which is able to receive Webhooks
- The endpoint can be configured for automatic confirmation of subscriptions using the procedure described here
A valid email address for receiving email notifications

Turn On Notifications for each IOIO Service

Sign into the IOIO Webapp with the credentials that have been sent to you.
- If you don't have any credentials, please contact the IOIO Team at support@ioio.tv

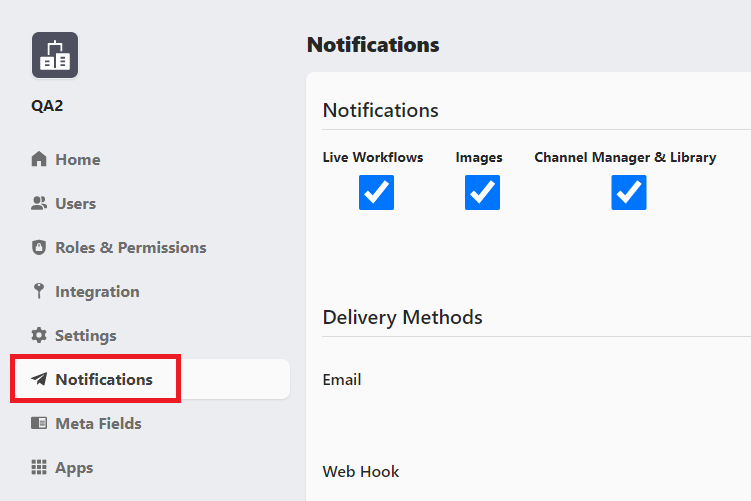

When the Dahsboard loads click on the Notifications option from the left:
Now the Notifications section is opened and we can toggle notifications for each service which is installed.

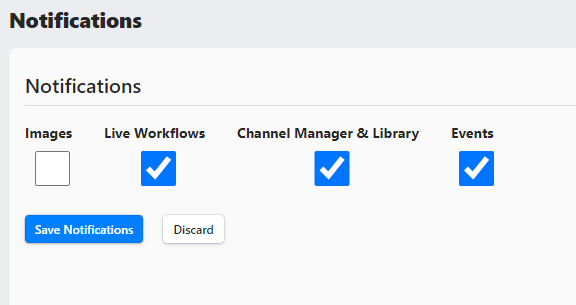

Notifications Turn On/Off

Simply click on each checkbox to either turn it On or Off and afterwards click on the Save Notifications button to have notifications turned On/Off for that particular service.

Webhooks

Subscribe to Webhooks using the IOIO Webapp

Sign into the IOIO Webapp with the credentials that have been sent to you.
When the Dahsboard loads click on the Notifications option from the left:
There are two sections in Notifications: Notifications and Delivery Methods.

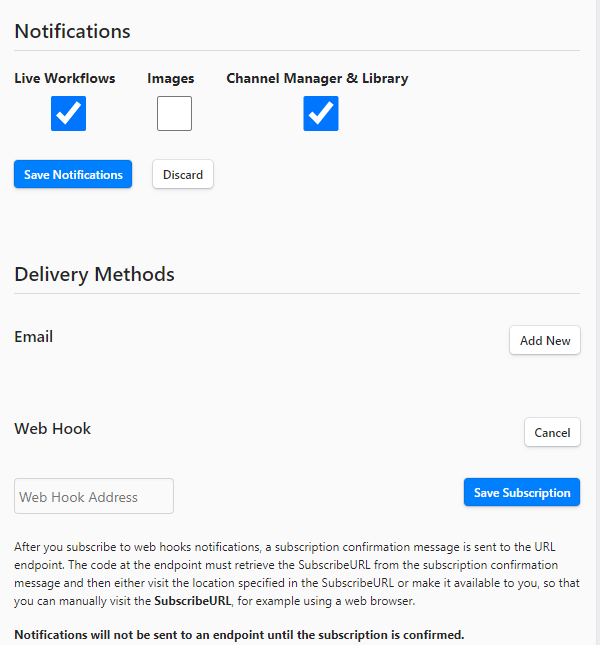

From Delivery Methods click on Add New and a field will be displayed which accepts a Web Hook Address:

Notifications Delivery Methods

Enter the Web Hook Address on which you would like to receive notifications and click on Save Subscription
When Saved the subscription will be with a pending status, which means that it needs to be confirmed, otherwise no notifications will be received on the endpoint. The notification which has the SubscribeURL field will look like this:

POST / HTTP/1.1

Host: hristohristov.requestcatcher.com

Accept-Encoding: gzip,deflate

Connection: Keep-Alive

Content-Length: 1856

Content-Type: text/plain; charset=UTF-8

User-Agent: Amazon Simple Notification Service Agent

X-Amz-Sns-Message-Id: 5d92753e-f12e-4806-aadb-fb7d91e7fd81

X-Amz-Sns-Message-Type: SubscriptionConfirmation

X-Amz-Sns-Topic-Arn: arn:aws:sns:us-west-2:679554989631:Topic_for_organization_a272539d-dae4-4141-a34f-1a0f508d8f03



{
 "Type" : "SubscriptionConfirmation",
 "MessageId" : "5d92753e-f12e-4806-aadb-fb7d91e7fd81",
 "Token" : "2336412f37fb687f5d51e6e2425e90ccf7a37c8320aec27f5404ed56a06664f10ea6f42f7a4367aa35ffa90ed30fcecdb313d03abda39db4b3e5e15c2b729253a58f5b8df73c8e22e17492d724182f26d31f603e41c05b865575214b3a7a0711178f0892d90b75c1f327ec9cfdcab83923c3b57be41b614c88e956ea0cda9b1217c0eaae5648adb52db70c41228968d15df001ac3d39ba034baf3d8153c7e633",
 "TopicArn" : "arn:aws:sns:us-west-2:679554989631:Topic_for_organization_a272539d-dae4-4141-a34f-1a0f508d8f03",
 "Message" : "You have chosen to subscribe to the topic arn:aws:sns:us-west-2:679554989631:Topic_for_organization_a272539d-dae4-4141-a34f-1a0f508d8f03.\nTo confirm the subscription, visit the SubscribeURL included in this message.",
 "SubscribeURL" : "https://sns.us-west-2.amazonaws.com/?Action=ConfirmSubscription&TopicArn=arn:aws:sns:us-west-2:679554989631:Topic_for_organization_a272539d-dae4-4141-a34f-1a0f508d8f03&Token=2336412f37fb687f5d51e6e2425e90ccf7a37c8320aec27f5404ed56a06664f10ea6f42f7a4367aa35ffa90ed30fcecdb313d03abda39db4b3e5e15c2b729253a58f5b8df73c8e22e17492d724182f26d31f603e41c05b865575214b3a7a0711178f0892d90b75c1f327ec9cfdcab83923c3b57be41b614c88e956ea0cda9b1217c0eaae5648adb52db70c41228968d15df001ac3d39ba034baf3d8153c7e633",
 "Timestamp" : "2021-06-11T09:53:52.327Z",
 "SignatureVersion" : "1",
 "Signature" : "rtnY2GgubHBMgDl9KoZN5Ekt3IlKPTtj54FoNSRmxa7KEQCgJ3hP7bgnuu3CFTGYFvq3K/VeRYn6oT2XkvXa5AkMiWlJ9aHqpC7FmfE41AcvihEpq5udkkWVKXmlyji9bFD66V0ImDQnvIQtv6VQx9A9j1NwvI+OOxJM6pOH/NZgTq0wVyyrgYeYwiOlwD0gXoSr2jRqpmWyboFsbnxsDPnz0osLu4CkuLeejo3xMOBMAxKVFIxuufC94V+Y0yUVCMKkbvIbpnrct0oUg4c/JSnLpEG6mNURO8x5QxvTnFYAa/l95MIeG9JNMH8w2prjhhWGGJk00JKH8Ge2sj7pCw==",
 "SigningCertURL" : "https://sns.us-west-2.amazonaws.com/SimpleNotificationService-010a507c1833636cd94bdb98bd93083a.pem"
}

Once received the SubscribeURL needs to be opened in order for the notification to be confirmed and the status of the subscription to be changed from Pending to Confirmed.
To check the status of our subscription we go back to the Notifications section of the IOIO Webapp:

Now we can see that our notification is confirmed and notification will not be received on the given endpoint.

Subscribe to Webhooks using the IOIO API

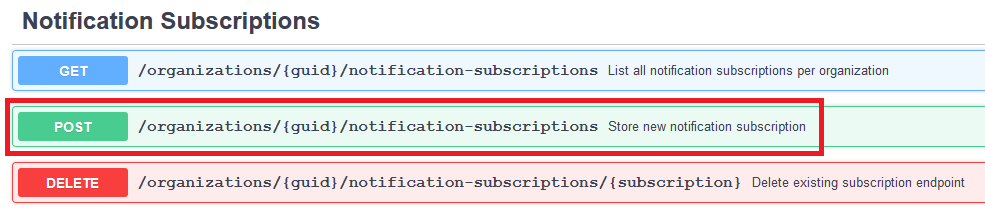

From the ioAuth API the Store new notification subscription endpoint is required for notifications subscriptions:
The endpoint requires an organization GUID and a payload containing the type of notification and the endpoint to which the notification to be pushed. A sample json looks like this:

{
  "endpoint": "https://ioiowebhooks.requestcatcher.com/",
  "type": "https"
}

Once executed the subscription will be with a pending status, which means that it needs to be confirmed, otherwise no notifications will be received on the endpoint. The notification which has the SubscribeURL field will look like this:

POST / HTTP/1.1

Host: hristohristov.requestcatcher.com

Accept-Encoding: gzip,deflate

Connection: Keep-Alive

Content-Length: 1856

Content-Type: text/plain; charset=UTF-8

User-Agent: Amazon Simple Notification Service Agent

X-Amz-Sns-Message-Id: 5d92753e-f12e-4806-aadb-fb7d91e7fd81

X-Amz-Sns-Message-Type: SubscriptionConfirmation

X-Amz-Sns-Topic-Arn: arn:aws:sns:us-west-2:679554989631:Topic_for_organization_a272539d-dae4-4141-a34f-1a0f508d8f03



{
 "Type" : "SubscriptionConfirmation",
 "MessageId" : "5d92753e-f12e-4806-aadb-fb7d91e7fd81",
 "Token" : "2336412f37fb687f5d51e6e2425e90ccf7a37c8320aec27f5404ed56a06664f10ea6f42f7a4367aa35ffa90ed30fcecdb313d03abda39db4b3e5e15c2b729253a58f5b8df73c8e22e17492d724182f26d31f603e41c05b865575214b3a7a0711178f0892d90b75c1f327ec9cfdcab83923c3b57be41b614c88e956ea0cda9b1217c0eaae5648adb52db70c41228968d15df001ac3d39ba034baf3d8153c7e633",
 "TopicArn" : "arn:aws:sns:us-west-2:679554989631:Topic_for_organization_a272539d-dae4-4141-a34f-1a0f508d8f03",
 "Message" : "You have chosen to subscribe to the topic arn:aws:sns:us-west-2:679554989631:Topic_for_organization_a272539d-dae4-4141-a34f-1a0f508d8f03.\nTo confirm the subscription, visit the SubscribeURL included in this message.",
 "SubscribeURL" : "https://sns.us-west-2.amazonaws.com/?Action=ConfirmSubscription&TopicArn=arn:aws:sns:us-west-2:679554989631:Topic_for_organization_a272539d-dae4-4141-a34f-1a0f508d8f03&Token=2336412f37fb687f5d51e6e2425e90ccf7a37c8320aec27f5404ed56a06664f10ea6f42f7a4367aa35ffa90ed30fcecdb313d03abda39db4b3e5e15c2b729253a58f5b8df73c8e22e17492d724182f26d31f603e41c05b865575214b3a7a0711178f0892d90b75c1f327ec9cfdcab83923c3b57be41b614c88e956ea0cda9b1217c0eaae5648adb52db70c41228968d15df001ac3d39ba034baf3d8153c7e633",
 "Timestamp" : "2021-06-11T09:53:52.327Z",
 "SignatureVersion" : "1",
 "Signature" : "rtnY2GgubHBMgDl9KoZN5Ekt3IlKPTtj54FoNSRmxa7KEQCgJ3hP7bgnuu3CFTGYFvq3K/VeRYn6oT2XkvXa5AkMiWlJ9aHqpC7FmfE41AcvihEpq5udkkWVKXmlyji9bFD66V0ImDQnvIQtv6VQx9A9j1NwvI+OOxJM6pOH/NZgTq0wVyyrgYeYwiOlwD0gXoSr2jRqpmWyboFsbnxsDPnz0osLu4CkuLeejo3xMOBMAxKVFIxuufC94V+Y0yUVCMKkbvIbpnrct0oUg4c/JSnLpEG6mNURO8x5QxvTnFYAa/l95MIeG9JNMH8w2prjhhWGGJk00JKH8Ge2sj7pCw==",
 "SigningCertURL" : "https://sns.us-west-2.amazonaws.com/SimpleNotificationService-010a507c1833636cd94bdb98bd93083a.pem"
}

Once received the SubscribeURL needs to be opened in order for the notification to be confirmed and the status of the subscription to be changed from Pending to Confirmed.

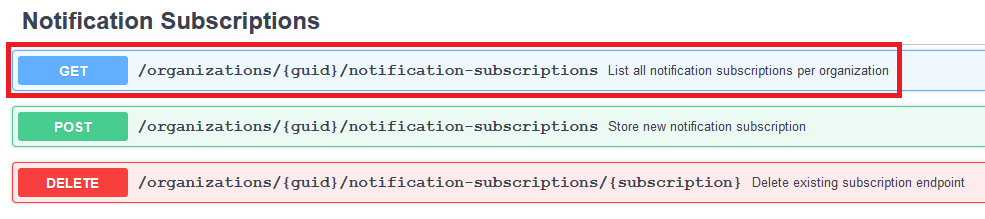

To check the status of our subscription we use the List all notification subscriptions per organization endpoint:

The endpoint requires the organization GUID in order to display all subscriptions in the given organization.

Pending Status

As we can see our notification is with a status PendingConfirmation. Now we need to open the SubscribeURL so that we can confirm the subscription.

Pending Status

Now we can see that our notification is confirmed and notification will not be received on the given endpoint.

E-Mail Notifications

Subscribe to Email using the IOIO Webapp

Sign into the IOIO Webapp with the credentials that have been sent to you.
When the Dahsboard loads click on the Notifications option from the left:
There are two sections in Notifications: Notifications and Delivery Methods.

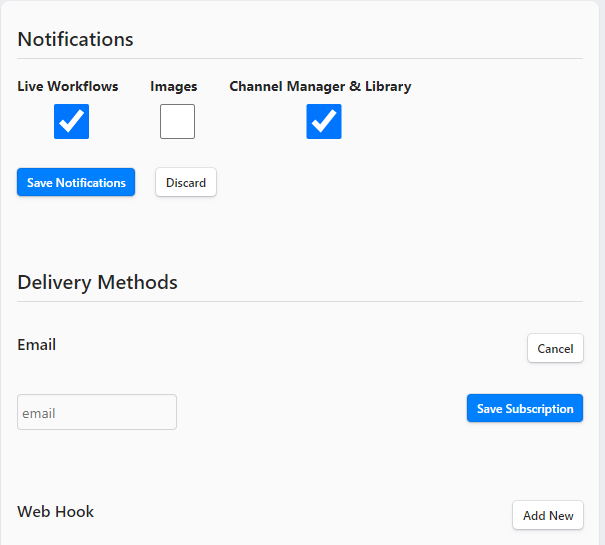

From Delivery Methods under Email click on Add New and a field will be displayed which accepts an email Address:

Notifications Delivery Methods

Enter the Email Address on which you would like to receive notifications and click on Save Subscription

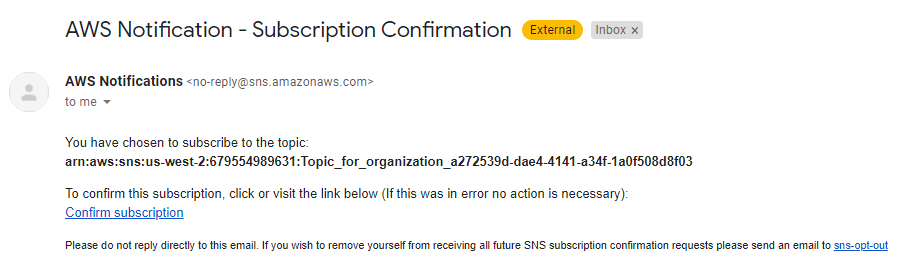

When Saved the subscription will be with a pending status, which means that it needs to be confirmed, otherwise no notifications will be received on the endpoint. The confirmation email should look like this:
Simply click on the Confirm subscription hyperlink and the subscription will be confirmed.

Subscribe to email notifications using the IOIO APP

From the ioAuth API the Store new notification subscription endpoint is required for notifications subscriptions:
The endpoint requires an organization GUID and a payload containing the type of notification and the endpoint to which the notification to be pushed. A sample json looks like this:

{
  "endpoint": "notifications@ioio.tv",
  "type": "email"
}

Once executed the subscription will be with a pending status, which means that it needs to be confirmed, otherwise no notifications will be received on the endpoint. The confirmation email should look like this: Simply click on the Confirm subscription hyperlink and the subscription will be confirmed.

Notification types per service - VOD/Broker

VOD/Broker Service Notifications

Source ingest:

{
    "guid": ...,
    "startTime": ...,
    "srcFile": ...,
    "status": ...,
    "originalFileName": ...,
    "sourcePath": ...,
}

Source encoding:

{
    "guid": ...,
    "startTime": ...,
    "srcFile": ...,
    "status": ...,
    "originalFileName": ...,
    "sourcePath": ...,
}

Source encoding with progress:

{
    "guid": ...,
    "startTime": ...,
    "srcFile": ...,
    "status": ...,
    "originalFileName": ...,
    "sourcePath": ...,
    "mediaConvertJobProgress": ...,
}

Source complete:

{
    "guid": ...,
    "startTime": ...,
    "srcFile": ...,
    "status": ...,
    "originalFileName": ...,
    "sourcePath": ...,
    "endTime": ...,
}

Source encode later:

{
    "guid": ...,
    "startTime": ...,
    "srcFile": ...,
    "status": ...,
    "originalFileName": ...,
    "sourcePath": ...,
}

Captions success:

{
    "guid": ...,
    "file": ...,
    "status": ...,
    "source_guid": ...,
    "captions": ...,
    "subject": ...,
}

Captions fail:

{
    "captions": ...,
    "msg": ...,
        "file": ...,
        "error": ...,
        "status": ...,
    },
    "subject": ...,
}

Source Puller is running:

{
    "bucket": ...,
    "guid": ...,
    "objectKey": ...,
    "sourcePuller": ...,
    "withSourceMeta": ...,
    "workflowStatus": ...,
}

Source Puller is complete:

{
    "bucket": ...,
    "guid": ...,
    "objectKey": ...,
    "sourcePuller": ...,
    "withSourceMeta": ...,
    "workflowStatus": ...,
}

Translation Workflow:

was submitted:
is running:
completed:
completed with errors:
failed:
was stopped:
is stopped:

{
   "translationJob": ...,
   "jobStatus": ...,
   "jobId": ...,
   "batchGuid": ...,
   "startTime": ...,
   "captionsGuid": ...,
   "captionFileGuid": ...,
   "sourceLang": ...,
   "targetLang": ...,
   "translationJobs": ...,
}

Clipping workflow:

has started:
completed:
progress update:

{
    "sourceClipping": ...,
    "guid": ...,
    "parentGuid": ...,
    "clips": ...,
    "startTime": ...,
    "srcFile": ...,
    "status": ...,
    "originalFileName": ...,
    "sourcePath": ...,
    "endTime": ...,
    "metaGuid": ...,
    "mediaConvertJobProgress": ...,
}

Notification types per service - Live

Live Service Notifications Notifications for Live are related to the Workflows and Alerts when a workflow is running.

Alert cleared
Alert set

Workflow Notifications For Workflow Notifications the following payload is returned:

{
  "message": "Workflow Scheduled Link is provisioning",
  "status": "PROVISIONING",
  "resourceId": "ae972f28-5b7b-46eb-8934-a684e63a308c",
  "resource": "channel"
}

With the Status being one of the following:

Workflow PROVISIONING
Workflow STARTING
Workflow RUNNING
Workflow STOPPING
Workflow DELETING
Workflow DONE
Workflow START_FAILED
Workflow STOP_FAILED
